3310F Series DC Electronic Load（75 W to 350 W

5 digital V / A / W Meter.
High-speed measurement and communication transmission.
V.A.W. values can be displayed simultaneously.
Large LCD Display、setting values can be adjusted by rotary knob or push button.
OCP 、 OPP test function.
Must be configured in 3302F〔Single Slot Mainframe〕3302F mainframe provides the NTC simulation test function（Option）、3305F〔Two Slot Mainframe〕or 3300F〔Four Slot Mainframe〕and the mainframe with 150 sets Store / Recall memory.
Power ON status value can be set.
Flexible CC. CR, CV, CP, Dynamic and Short operation modes.
SHORT time setting and SHORT_VH, SHORT_VL setting function.
Protections against V, I, W, and °C.
Voltage meter display the polarity positive（” ＋ ”）or negative（” － ”）is selectable.
SYNC. Load ON function.
Optional Interface : GPIB、RS232、USB、LAN.
Support MPPT CC, CR, CV test function for solar panel
New waveform generator plugs in model 9923 adds user programmable battery Discharge current waveform simulation to Prodigit DC Loads

3300F

Four Slot Mainframe

3300F-29 (3300F PCP)(GPIB)

Four Slot Mainframe FOR 3311F-11/3332F-05

3305F

Two Slot Mainframe

3302F

Single Slot Mainframe

3302F-14

Single Slot Mainframe FOR 3311F-16

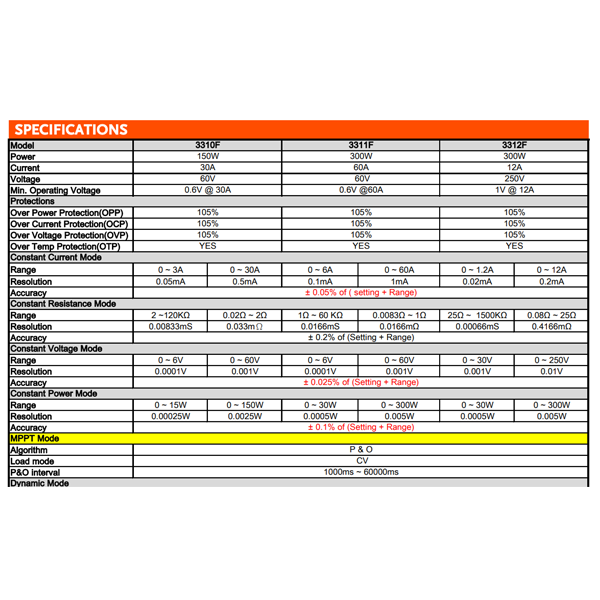

3310F

Multi-Channel DC Electronic Load 60 V / 30 A / 150 W

3311F

Multi-Channel DC Electronic Load 60 V / 60 A / 300 W

3312F

Multi-Channel DC Electronic Load 250 V / 12 A / 300 W

3314F

Multi-Channel DC Electronic Load500 V / 12 A / 300 W

3315F

Multi-Channel DC Electronic Load 60 V / 15 A / 75 W

3311F-05

Multi-Channel DC Electronic Load 120 V / 60 A / 300 W

3311F-16

Multi-Channel DC Electronic Load 80 V / 70 A / 350 W

3311F-20 (3311F PCP)

Multi-Channel DC Electronic Load 60 V / 60 A / 300 W

Each 3310F Series module has its own control and display panel, CC/CR/CV/CP/Dynamic modes, plug in 3300F with 150 sets Store/Recall memory which provides load set-up more efficiently, also can be controlled intranet via RS232、Ethernet、USB and GPIB interface.
Each 3310F Series module has its own control and display panel, CC/CR/CV/CP/Dynamic modes, plug in 3300F with 150 sets Store/Recall memory which provides load set-up more efficiently, also can be controlled intranet via RS232、Ethernet、USB and GPIB interface.
SHORT time setting and SHORT_VH, SHORT_VL setting function, also can measure Short Voltage and Current.
Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input so that load can have a simulated Arbitrary Waveform.
The additional OCP, OPP test function operated by both mainframe and module that will be more efficiency and accuracy on OCP, OPP testing.
Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display “ + “ or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.
150 sets test parameter and status storage function can call the storage memory real time in accordance with the auto sequence requirement.
